WENTYLE is an AutoCAD application supporting the drawing and calculation of ventilation installations. It is compatible with the following AutoCAD versions, from 2000 up to the latest release.
WENTYLE is free of charge.

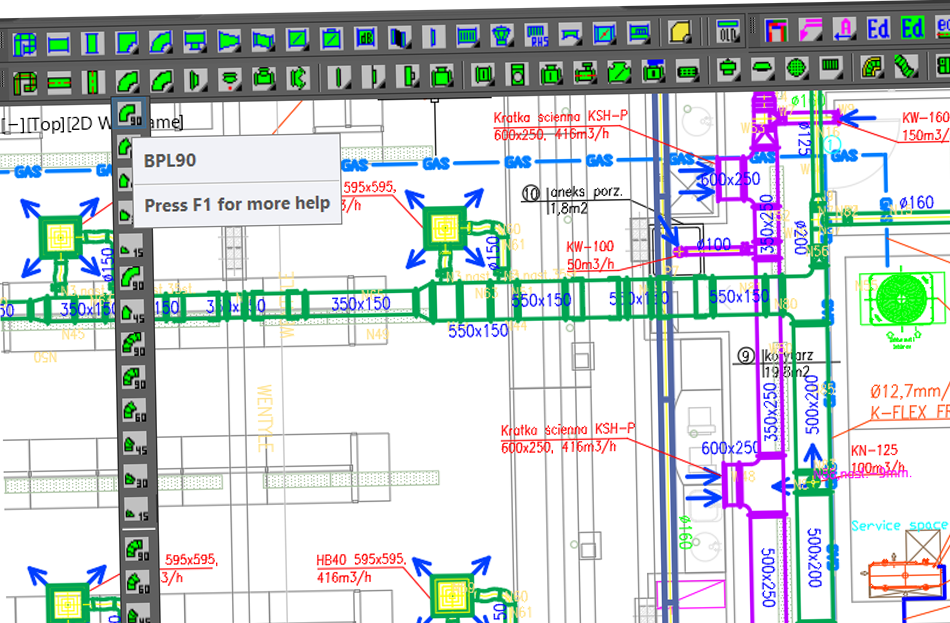

WENTYLE supports the drawing of 2D ventilation installations based on circular duct systems, as well as rectangular ducts and fittings manufactured by ALNOR.
The software enables convenient installation design and easy modification of existing projects. At the end of the design process, it automatically generates a schedule of all elements used in the project.
The program operates within the AutoCAD environment and other CAD platforms, and was developed as a result of extensive consultation with Polish ventilation designers. It continues to be actively developed.
.png)
Compatibility with other CAD software
Wentyle 6.2 is compatible with ZwCAD from version 2019, BricsCAD from version V11, and GstarCAD from version 2016.
.png)
ALNOR library in Wentyle
Over the many years since the Wentyle plug-in was first introduced, we have significantly expanded the ALNOR library within the program. In addition to circular, rectangular, and flexible duct and fitting systems, the library now includes the following product groups:
The English version of the Wentyle program is now available for download at
