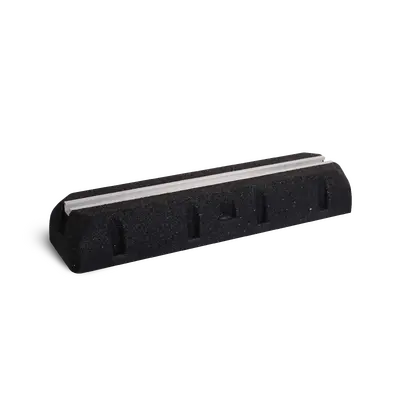

Rooftop foot for HVAC equipment ST-ROF-AWL

ST-ROF-AWL rooftop feet are designed for stable installation and support of heavy ventilation, air conditioning, and refrigeration units on flat roofs. The optimized roof foot design ensures ideal weight distribution over a larger surface, effectively eliminating the risk of damage to the roof structure and ceiling. Made of durable SBR rubber compound, it guarantees excellent dampening of vibrations generated by operating HVAC units. Equipment is secured via the LDBST mounting profile.

Key Features

Durable SBR rubber – high resistance to moisture and weather conditions.
Effective vibration damping – flexible rubber structure eliminates vibration and acoustic noise.
Roof structure protection – even load distribution prevents roof membrane puncture and stress.
High load capacities – maximum loads ranging from 1070 N up to 5000 N depending on foot length.
Thermal resistance – operational capability in temperatures ranging from -40°C to +80°C.

Technical Data

Parameter	Value
Material	Styrene-butadiene rubber SBR
Fire class	B2 according to DIN 4102
Temperature resistance	from -40°C to +80°C
Mounting channel	LDBST profile

Dimensions and load capacity

Product Code	Width A [mm]	Spacing B [mm]	Length L [mm]	Height H [mm]	Max. Load [N]	Weight [kg]
ST-ROF-AWL-250	160	-	250	90	1070	0.48
ST-ROF-AWL-450	160	-	450	90	2060	1.75
ST-ROF-AWL-600	160	470	600	90	3040	3.10
ST-ROF-AWL-1000	160	755	1000	90	5000	10.20
