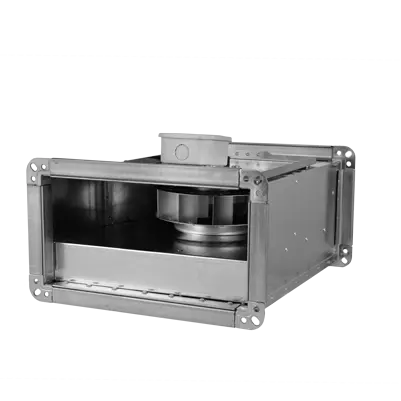

A rectangular cross-section duct fan, designed for ventilating medium and large spaces where space is limited. The DV-SQ series has been engineered and manufactured to provide high efficiency, trouble-free operation, and direct connection to the ventilation duct. It finds application in residential, commercial, and industrial areas, including bathrooms, toilets, utility rooms, swimming pools, gyms, warehouses, cafes, bars, restaurants, shops, schools, offices, factories, pubs, hotels, shopping centers, entertainment centers, workshops, and general ventilation.
| Type | Voltage [V] | Frequency [Hz] | Power [W] | Current [A] | Capacitor [μf] | Speed [rpm] | Airflow [m³/h] | Noise level dB(A) | Weight [kg] | Energy Class |
|---|---|---|---|---|---|---|---|---|---|---|
| DV-SQ-400-200 | 230 | 50 | 130 | 0.58 | 5.00 | 2675 | 1150 | 75 | 11 | E |
| DV-SQ-600-350 | 230 | 50 | 380 | 1.7 | 8.00 | 1420 | 3400 | 78 | 32 | E |
