Round Duct Filter FSBQL for Ventilation Systems with Replaceable Cartridge

FSBQL

Round Duct Filter FSBQL for Ventilation Systems

The FSBQL duct filter is a crucial component for ventilation systems, designed for effective air filtration in round ventilation ducts with standard diameters from 100mm to 500mm. Its robust construction, made from galvanized steel sheet and secured with latches, ensures durability and ease of maintenance. The special design allows for quick and hassle-free replacement of the filter cartridge, minimizing downtime and simplifying upkeep.

Key Features

Application in round ventilation ducts with diameters from 100-500mm.
Housing made of galvanized steel sheet, secured with latches.
Mounting spigots with EPDM rubber seals for airtight connection.

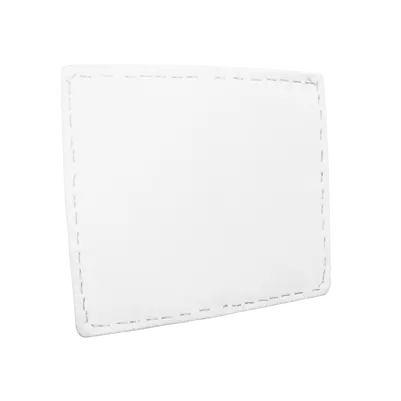

Easy and free replacement of the filter cartridge.
Available filter cartridges in classes: EU3/G3/ISO COARSE 45%, EU4/G4/ISO COARSE 70%, EU5/M5/ISO ePM10 55%.

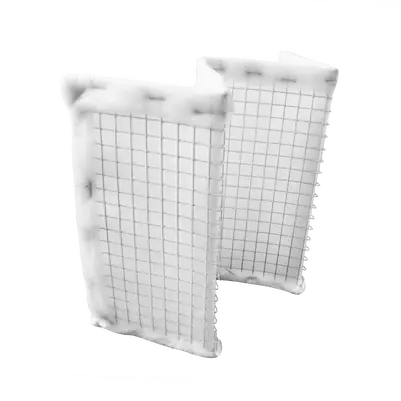

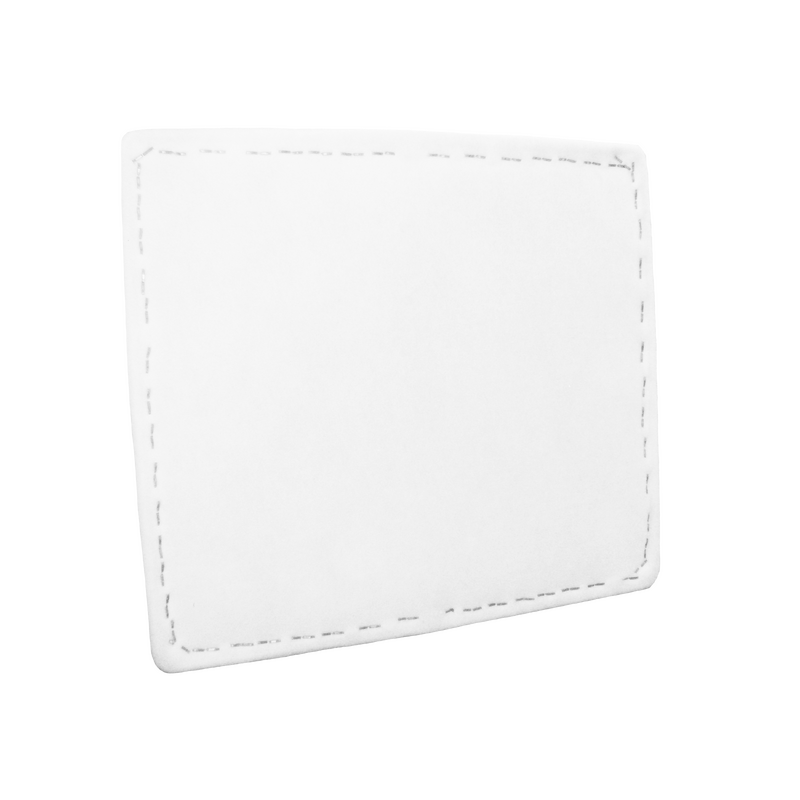

Option to order frame filters (FSBQ-I) or pleated filters (FSBQ-W) with protective mesh.
Available activated carbon non-woven insert (FSBQ-W-CA) for odor removal.
Optional housing made of acid-resistant steel 1.4301/304.

Technical Data

Type	Ød [mm]	AxA [mm]	B [mm]
FSBQL-100	100	160	150
FSBQL-125	125	180	150
FSBQL-150	150	210	150
FSBQL-160	160	210	150
FSBQL-200	200	250	150
FSBQL-250	250	300	150
FSBQL-315	315	360	150
FSBQL-355	355	400	150
FSBQL-400	400	450	150
FSBQL-450	450	500	150
FSBQL-500	500	550	150
