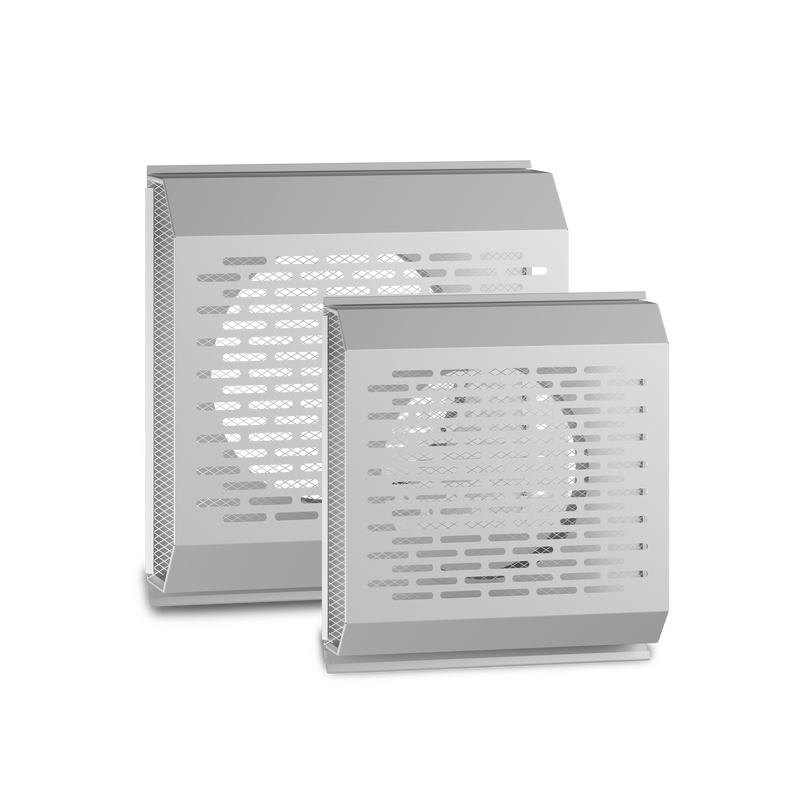

The UVLA wall-mounted air intake/exhaust is a versatile component used in various ventilation systems, including recuperation, mechanical, and gravity ventilation. This product features an aesthetic design and high durability, with a semi-circular cover and angled blades that effectively protect against air ingress and direct airflow downwards. Thanks to its rubber seal and mounting clamps, installation is simple and quick. It can be mounted both outdoors and indoors.
| Ød [mm] | A [mm] | B [mm] | C [mm] | Active Area [m²] |
|---|---|---|---|---|
| 100 | 95 | 148 | 48 | 0.005 |
| 125 | 120 | 188 | 48 | 0.008 |
| 150 | 145 | 210 | 56 | 0.012 |
| 160 | 155 | 210 | 62 | 0.014 |
| 180 | 175 | 272 | 66 | 0.016 |
| 200 | 195 | 272 | 70 | 0.018 |
| 250 | 245 | 285 | 75 | n.d. |
