Electrostatic Anti-Smog Filter for Residential Ventilation Systems

e-MOCarz

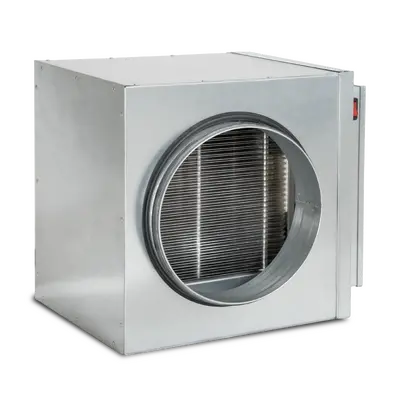

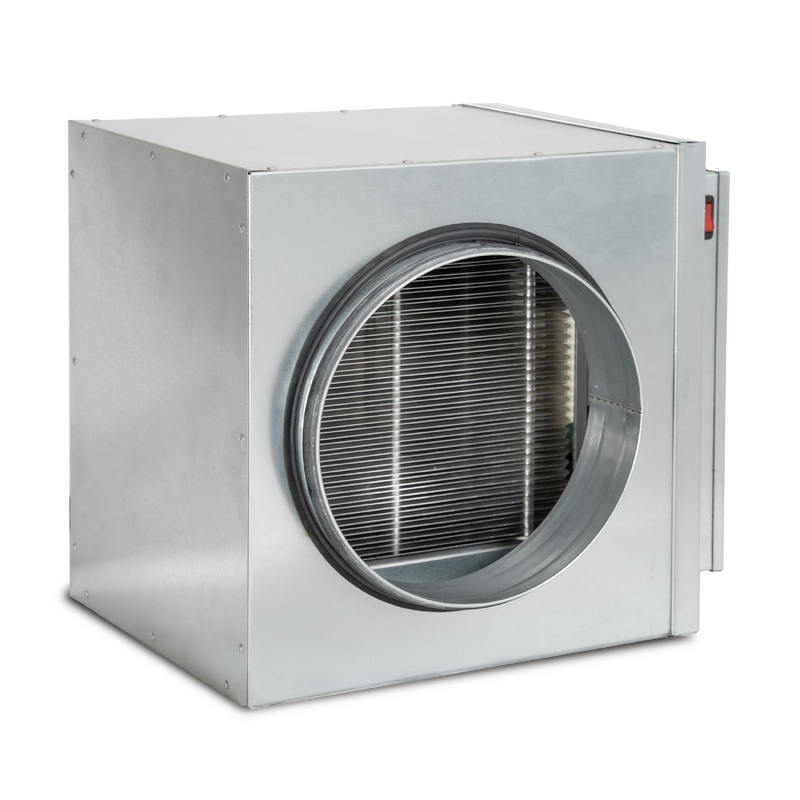

Electrostatic Anti-Smog Filter e-MOCarz

The e-MOCarz electrostatic filter is designed for effective air purification in residential homes. Thanks to its compact dimensions and exceptionally low airflow resistance, it can be easily integrated into home recuperation systems without negatively impacting their efficiency. The filtration efficiency for the main smog components, ePM1 and ePM2.5 particles, is up to 95%. The filtration process involves initial retention of larger fractions, ionization of particles via corona discharge, and subsequent deposition on charged aluminum plates. The device features low power consumption, long element lifespan, and no need for cartridge replacement, significantly simplifying maintenance. The filter also has a status indicator diode and should operate within the range of 360 - 720 m³/h.

Key Features

High filtration efficiency: up to 95% for ePM1 and ePM2.5 particles.
Low airflow resistance: only 10 Pa.
Compact dimensions: ideal for residential recuperation systems.
Low power consumption: only a few Watts.
No cartridge replacement needed: the filter is reusable and easy to clean with water.
Long lifespan of components.
Operating status diode.
Recommended operating range: 360 - 720 m³/h.

Available Accessories

e-MOCarz-W: Reusable, renewable electrostatic filter (included in the set).
e-MOCarz-ION: Ionizing module, additionally sterilizing and revitalizing the air.
e-MOCarz-CA: Module with activated carbon inserts, for additional odor filtration.
e-MOCarz-PRL-160: Connection Ø160.
e-MOCarz-PRL-200: Connection Ø200.
e-MOCarz-PRL-250: Connection Ø250.

Technical Data

Dimensions

Code	A [mm]	B [mm]	L [mm]
E-MOCarz	340	385	230
E-MOCarz-W	325	283	105

General Parameters

Model	Airflow [m³/h]	Max. filtration efficiency according to EN ISO 16890	Power [W]	Weight [kg]
e-MOCarz	360 - 720	ePM1 95%	9	11

Filtration Efficiency according to ISO 16890

Airflow	Air velocity	ePM1	ePM2.5
360 m³/h	2 m/s	95%	95%
540 m³/h	2.5 m/s	90%	95%
720 m³/h	3 m/s	80%	90%

O3 Emission

Air velocity	ΔO3 [ppb]	ΔO3 [µg/m³]
1 m/s	20.3	39.8
2 m/s	13.0	25.5
3 m/s	8.3	16.3
