Distribution boxes for heat ventilation system

FLX-PLO-EPP-R-P

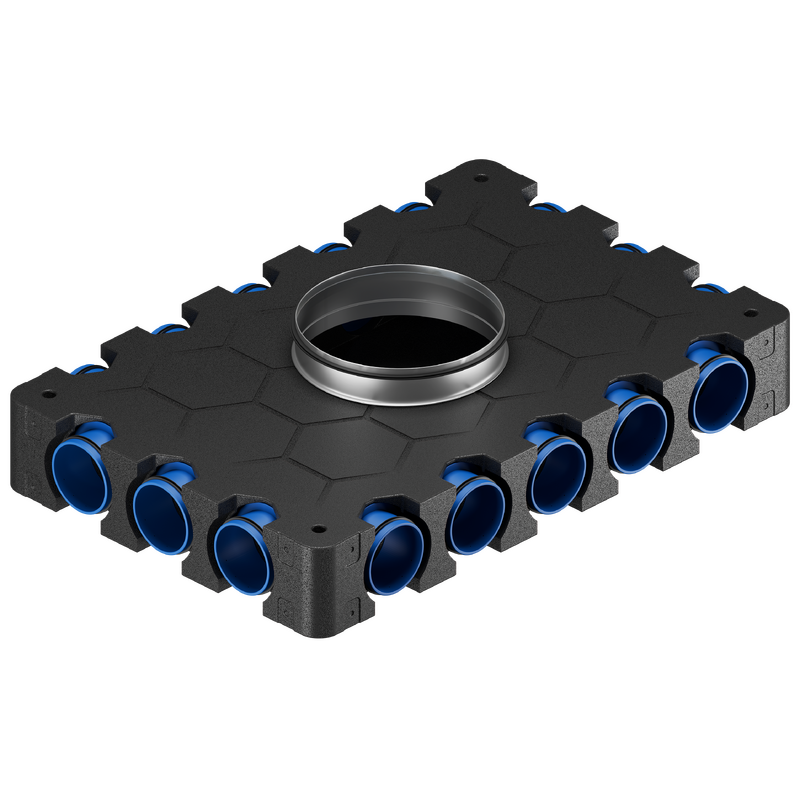

Photo of product FLX-PLO-EPP-R-P



FLX-PLO-EPP-R-P manifolds are intended for use in domestic mechanical ventilation systems. These manifolds collect semi-rigid ducting with a 75mm diameter. In MVHR systems, there is usually one manifold for the supply air and one for the exhaust air. The construction material of the manifolds is expanded polypropylene (EPP), which also has an insulating function.

Additional advantages of EPP are the lightness of the products with high stiffness at the same time, good acoustics and no susceptibility to corrosion.

Sprawdź parametry techniczne produktu

EPP Plenum boxes & manifolds - Products range
Miniature picture Product code Name of product Files to download

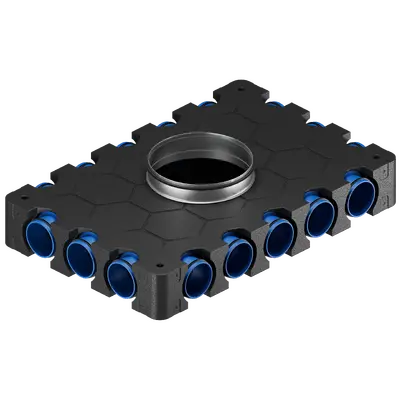

Photo of product EPP manifolds for MVHR ducting FLX-PLO-EPP-R

EPP manifolds for MVHR ducting



FLX-PLO-EPP-R manifolds are intended for use in domestic mechanical ventilation systems. These manifolds collect semirigid ducting with a 75mm diameter, which is then distributed to the rooms. A typical MVHR installation will have 1 to 2 such manifolds on the supply air duct and similarly on the extract air duct. Manifolds are constructed using expanded polypropylene (EPP), which also has an insulating property.

Additional advantages of EPP include its lightweight with a strong stiffness at the same time, good acoustical properties, and corrosion resistance.

EPP manifolds for MVHR ducting
Photo of product EPP manifolds for MVHR ducting (6-13 x 75 mm) FLX-PLO-EPP-R-P

EPP manifolds for MVHR ducting (6-13 x 75 mm)



FLX-PLO-EPP-R-P manifolds are intended for use in domestic mechanical ventilation systems. These manifolds collect semi-rigid ducting with a 75mm diameter. In MVHR systems, there is usually one manifold for the supply air and one for the exhaust air. The construction material of the manifolds is expanded polypropylene (EPP), which also has an insulating function.

Additional advantages of EPP are the lightness of the products with high stiffness at the same time, good acoustics and no susceptibility to corrosion.

EPP manifolds for MVHR ducting (6-13 x 75 mm)
Photo of product EPP plenum box for air valve FLX-PLO-EPP-75-1-100-F

EPP plenum box for air valve



 The FLX-PLO-EPP-F plenum boxes are part of the FLX-REKU air distribution system designed for domestic mechanical ventilation systems, so-called the MVHR system, to which an air valve and FLX-HDPE / FLX-HDPE-A ducts with a diameter of Ø75 are mounted.

Due to their small size, they do not require much space or special installation. This allows achieving a larger usable floor area of the room.

The FLX-PLO-EPP-F plenum boxes are made of expanded polypropylene, i.e. EPP, while Ø75 spigots are made of ABS. The material used allows obtaining an aerodynamic shape of the inside of the box which leads to low air resistance.

Key features:

  • EPP is an insulation material λ=0.039, the wall thickness is about 8 to 31 mm.
  • The profiled internal shape of the box reduces pressure drops
  • “Double” FLX-HDPE duct fixing - the male connection spigot with a gasket on the inside and EPP casing on the outside
  • The plenum boxes do not corrode
  • Spigot (d1) for an air valve with graduation to be cut to size as required - 40, 60, or max. 80 mm.
  • 2 installation methods - with 3 screws and wall plugs or with 17-25 mm-wide PB perforated tape

The FLX-PLO-EPP-F plenum boxes are equipped with TPE gasket on Ød2 spigots as a standard - such connection with FLX-HDPE ducts is airtight and easy to make. A system created with the FLX-PLO-EPP-F boxes achieves the airtightness class C.



EPP plenum box for air valve
Photo of product EPP plenum box for air valve FLX-PLO-EPP-75-2-125-F

EPP plenum box for air valve



 The FLX-PLO-EPP-F plenum boxes are part of the FLX-REKU air distribution system designed for domestic mechanical ventilation systems, so-called the MVHR system, to which an air valve and FLX-HDPE / FLX-HDPE-A ducts with a diameter of Ø75 are mounted.

Due to their small size, they do not require much space or special installation. This allows achieving a larger usable floor area of the room.

The FLX-PLO-EPP-F plenum boxes are made of expanded polypropylene, i.e. EPP, while Ø75 spigots are made of ABS. The material used allows obtaining an aerodynamic shape of the inside of the box which leads to low air resistance.

Key features:

  • EPP is an insulation material λ=0.039, the wall thickness is about 8 to 31 mm.
  • The profiled internal shape of the box reduces pressure drops
  • “Double” FLX-HDPE duct fixing - the male connection spigot with a gasket on the inside and EPP casing on the outside
  • The plenum boxes do not corrode
  • Spigot (d1) for an air valve with graduation to be cut to size as required - 40, 60, or max. 80 mm.
  • 2 installation methods - with 3 screws and wall plugs or with 17-25 mm-wide PB perforated tape

The FLX-PLO-EPP-F plenum boxes are equipped with TPE gasket on Ød2 spigots as a standard - such connection with FLX-HDPE ducts is airtight and easy to make. A system created with the FLX-PLO-EPP-F boxes achieves the airtightness class C.



EPP plenum box for air valve
Photo of product Extension pipe for FLX-PLO-EPP plenum box for air valve FLX-PVC-SRGL

Extension pipe for FLX-PLO-EPP plenum box for air valve



PVC extension piece/ round pipe, 0.5 m long. It is used to extend the connection spigot d1
in the FLX-PLO-EPP-F plenum box for the supply and exhaust valve, for example, by the thickness of
the ceiling.

Available diameters:100 i 125mm.
Material: PVC
Wall thickness: 1.5mm
Length: 500mm

FLX-PVC-NS-100 or FLX-PVC-NS-125 couplings
are required to install the extension pipe onto
the plenum box FLX-PLO-EPP-F.

Extension pipe for FLX-PLO-EPP plenum box for air valve
