Cassette Filter for Rectangular Ventilation Ducts

FSCQ

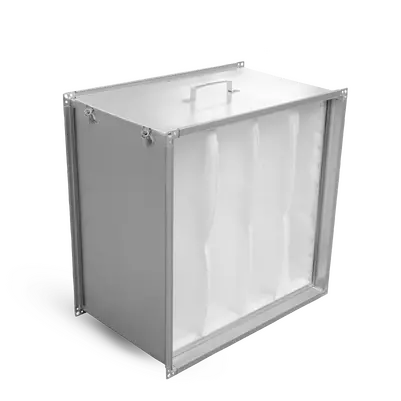

FSCQ Cassette Filter for Rectangular Ventilation Ducts

The FSCQ cassette filter is designed for efficient air filtration in rectangular ventilation ducts. Its construction allows for easy replacement of the filter media, which slides in from the top and is secured with latches. The filter media is made of a wavy arranged filter mat, reinforced with a galvanized steel wire mesh.

Key Features

Designed for air filtration in rectangular ventilation ducts.
Easy and quick filter media replacement due to latch-secured design.
Available filtration classes: EU3/G3/ISO Coarse 45%, EU4/G4/ISO Coarse 70%, EU5/M5/ePM10 55%, EU7/F7/ePM2.5 65%.
Can be used as a grease filter (available in aluminum, galvanized steel, or stainless steel versions).
Standard filter media thickness: 40 mm (50 mm available on request).
Housing made of galvanized steel (for the standard version).
Constant filter length: 140 mm.
Maximum filter dimensions: 2000x2000 mm.

Technical Data

Filter class	Flow rate	Initial pressure drop	Final pressure drop
FSCQ EU3/G3/ISO Coarse 45%	5400m³/h/m²	62Pa	250Pa
FSCQ EU5/M5/ISO ePM10 55%	900m³/h/m²	45Pa	450Pa
